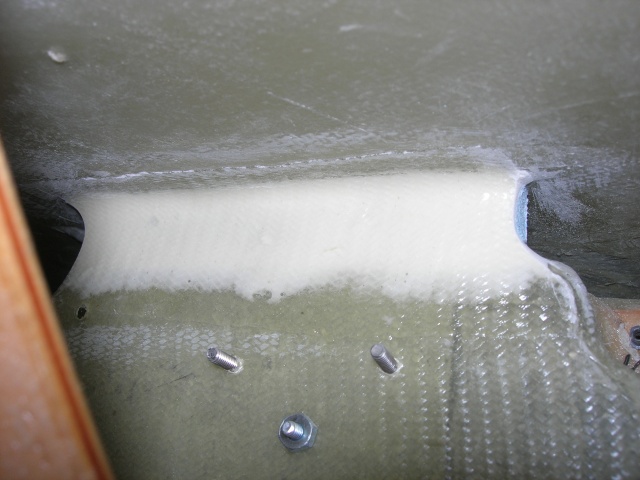

Rigidize/size/atize top center of instrument module 2.

Strengthening complete. A lot stiffer. Now for some filling and sanding up top. Come to think of it "and all around too!" Just can't get away from that "fillinandasandin".
Y10-02-14

Date: 02/11/2010
