Lower port insert firewall connector 2.

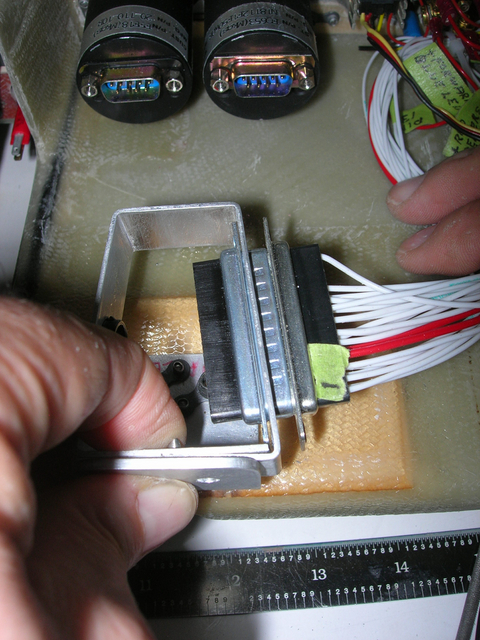

I am holding the connector in position where it will be upon final assembly.
The female half of the 25P D-sub connector stays on the firewall.
