Mutilated forward fan LED indicator 2.

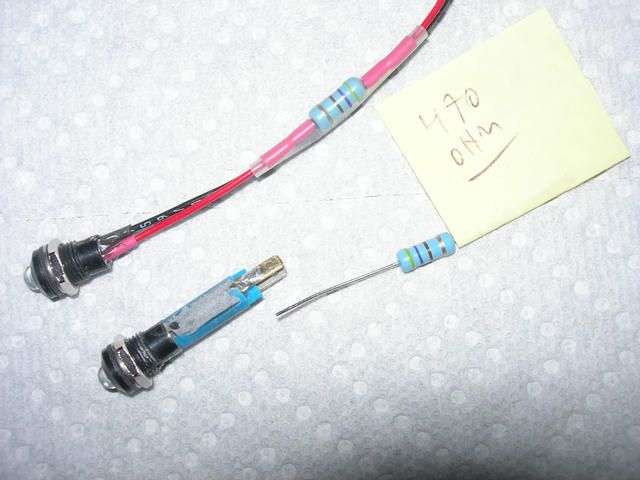

Richie also mutilated and stole a black bezel and fitted a blue LED to it without the back blue plastic stand off. This will be used for my "rich" switch that will energize the enrichment solenoid at will on the 914. The 470 ohm dropping resistor was added in series with red power lead.
