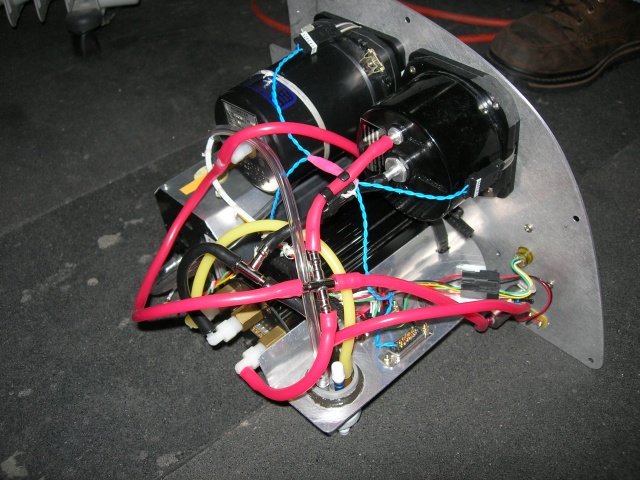

Port insert 3.
Wiring complete, pneumatic lines are only temporarily in place until we complete painting of insert.
Art changed the inboard 15 pin D-sub connector to a barrel crimp from a solder pot type because the solder pot proved to be too difficult to solder in place being that close to the Dynon D10A.
Blue twisted wires are for EL lighting.
The 3 and 4 nipple connectors are nice items from Winter. I purchased them from Paul @ Cumlious Soaring.
Notice the outboard 15 pin D-sub connector has a lot of pins jumped together, it is a common ground point that will have multiple wires going to my single point ground on the firewall.
