R2

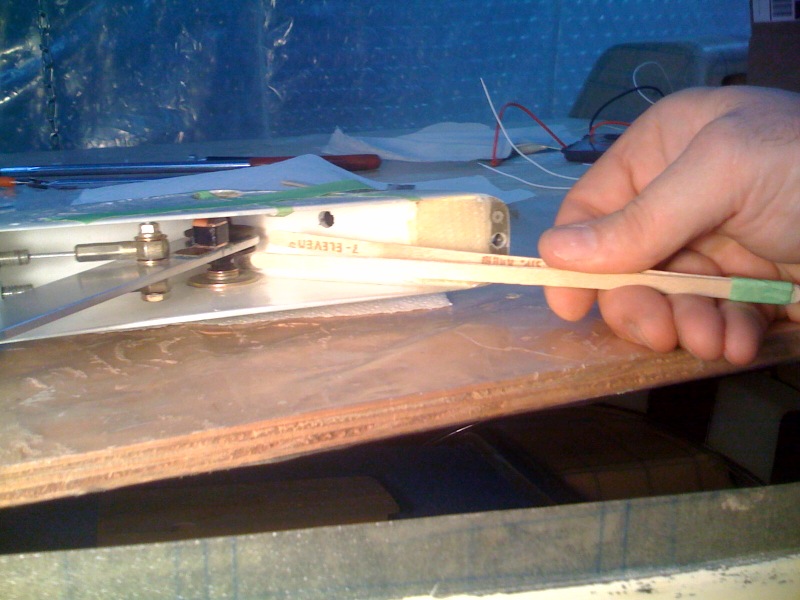

(CAUTION: SLIPPERY WHEN WET!) Non-magnetic tweezers obtained from Aviation isle at 7-11 used to locate magnet assembly onto throttle lever. We are hoping for a quick cure so as the fool magnet assembly does not make an exponential run for either the pivot bolt or dual throttle cable ends!
Y8-10-27

Date: 10/27/2008
