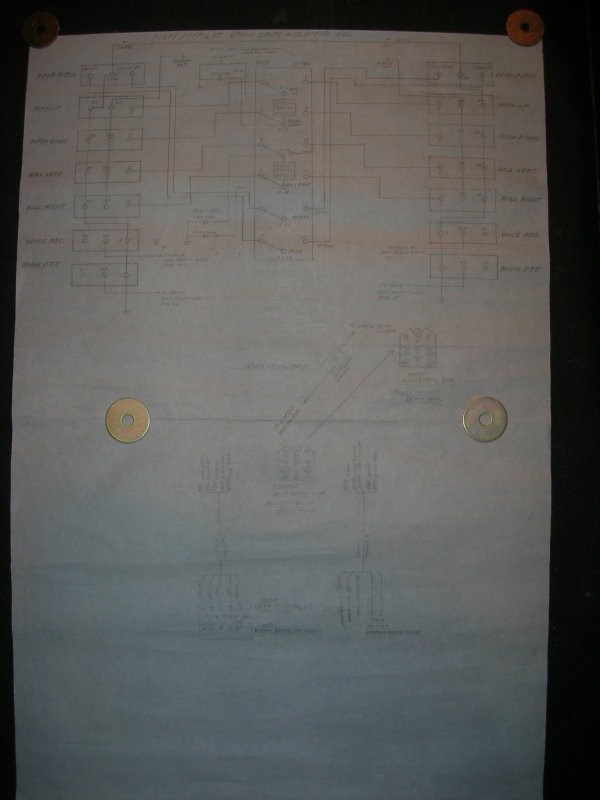

Was trying to avoid a lot of reworking, but it was unavoidable. Revised schematic adds one rogue pin connector that will be a crimped machined D-sub that is heat shrunk. We have two 5 wire bundles going to stick, was only using 9 wire connector so we doubled up on the ground. We will take the extra ground and use it for the rogue pin. Since we are no longer going to run prop motor through stick switch, since we paralleled two selector switch poles to handle current, it gave us the extra pole we needed.
A relay board for prop manual control was in order that sourced power for motor control from prop controller (details a few pics hence).
Y10-06-11
