Stick grip 6

Stick grips and selector control between Pilot and Co-Pilot.

1. Stick grip 2 ... 5. Stick 1 6. Stick 4 7. Stick grip 4 8. Stick grip 6 9. Stick 2 10. Stick 3 11. Stick 9 ... 28. 15 pin HD...

Random Images

Bonding of Starboard lift pin sockets 3.

Date: 10/19/2010 Views: 6722

Strober_2

Date: 05/17/2009 Views: 5551

dscn1510

Date: 12/31/1969 Views: 4467

Newest Image

EAA SITE

Date: 08/23/2023 Views: 695226

Stick grip 6

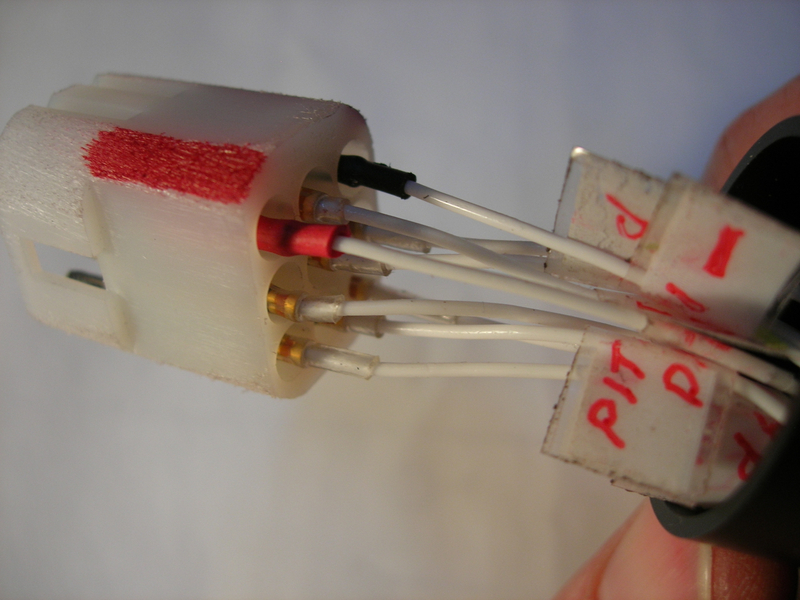

Detail of connection. #26 wires doubled over and crimped to machined male D-sub pin. D-sub gets heat shrink over wire for strain relief. D-sub gets crimped to Radio Shack 9 pin Molex connector after the insulation crimp is cut off, then D-sub is soldered to Molex pin. There is no solder on #26 wire to make it stiff.
