IMG_7387ann

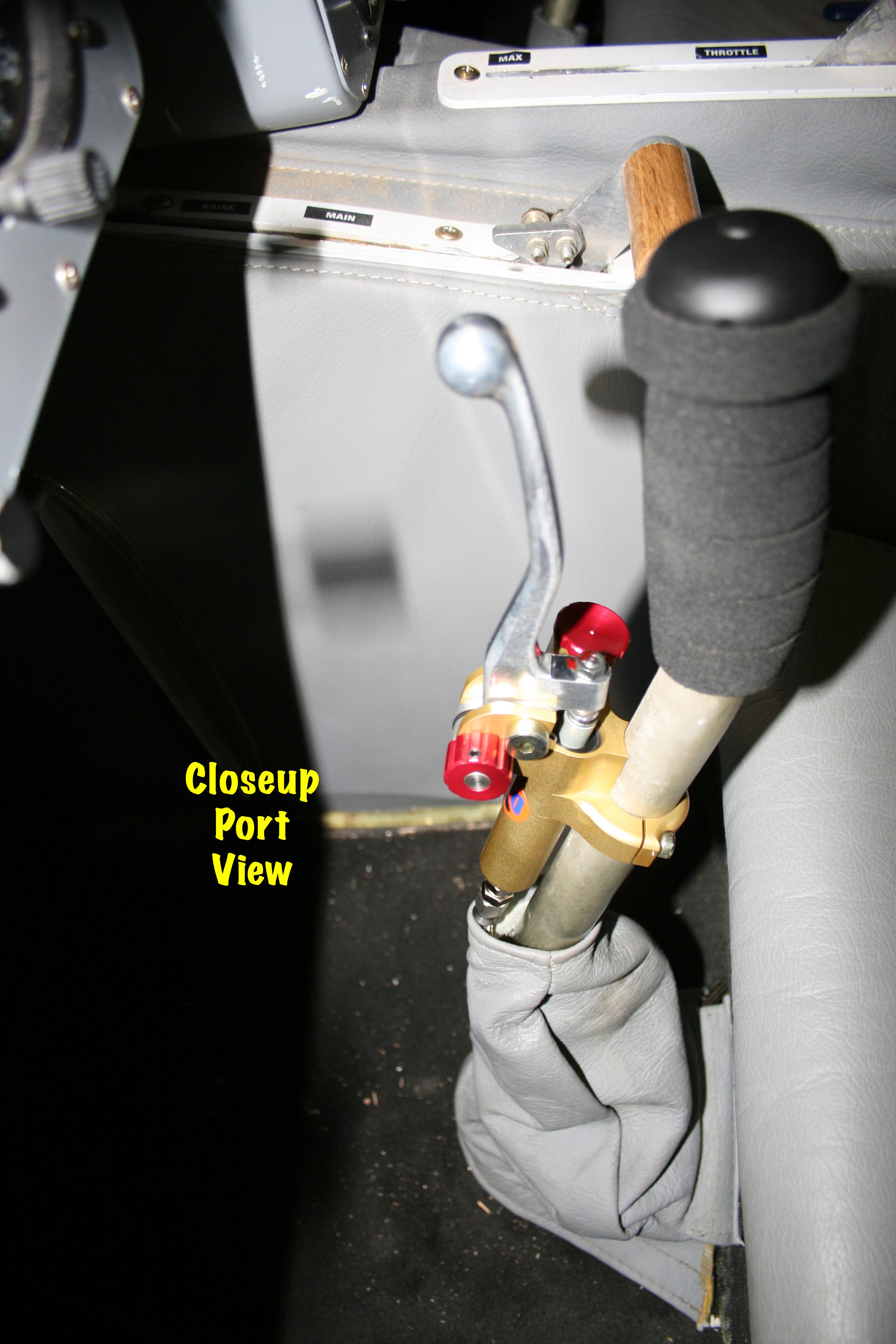

This pic shows the port side of the master cylinder. The red knob is the parking brake. You squeeze the brake lever and turn the knob (top back toward you) and release the lever. This holds the brake on. To release the brake you simply squeeze the brake lever again and the knob rotates back to the off position.

Date: 03/07/2010
