IMG_0097Ann

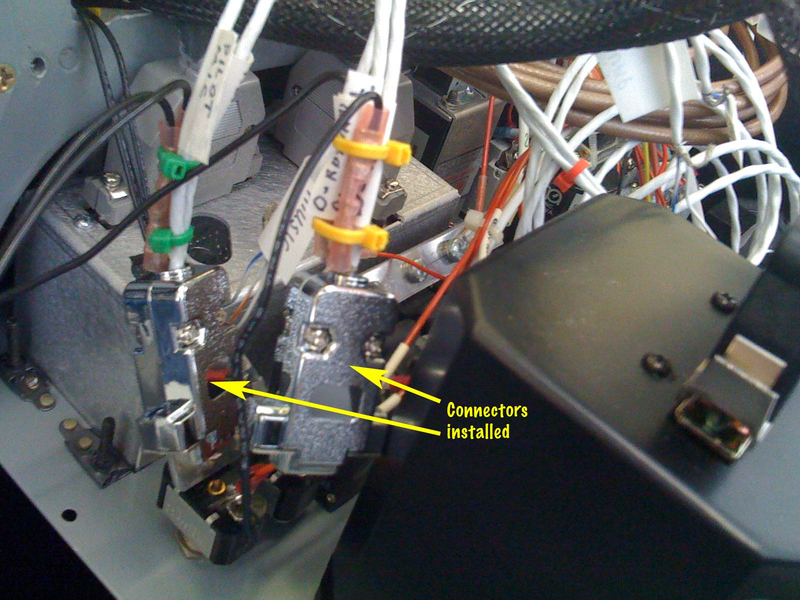

Then crimped pins on and added D-Sub connectors. Male to the pilot side and female to the copilot side. Once again, I checked each pin back to the appropriate pin on either J1 or J2 connector of the audio panel. This all took about 8 hours of work on Friday.

Date: 10/12/2008
