Bonding of Starboard lift pin sockets 3.

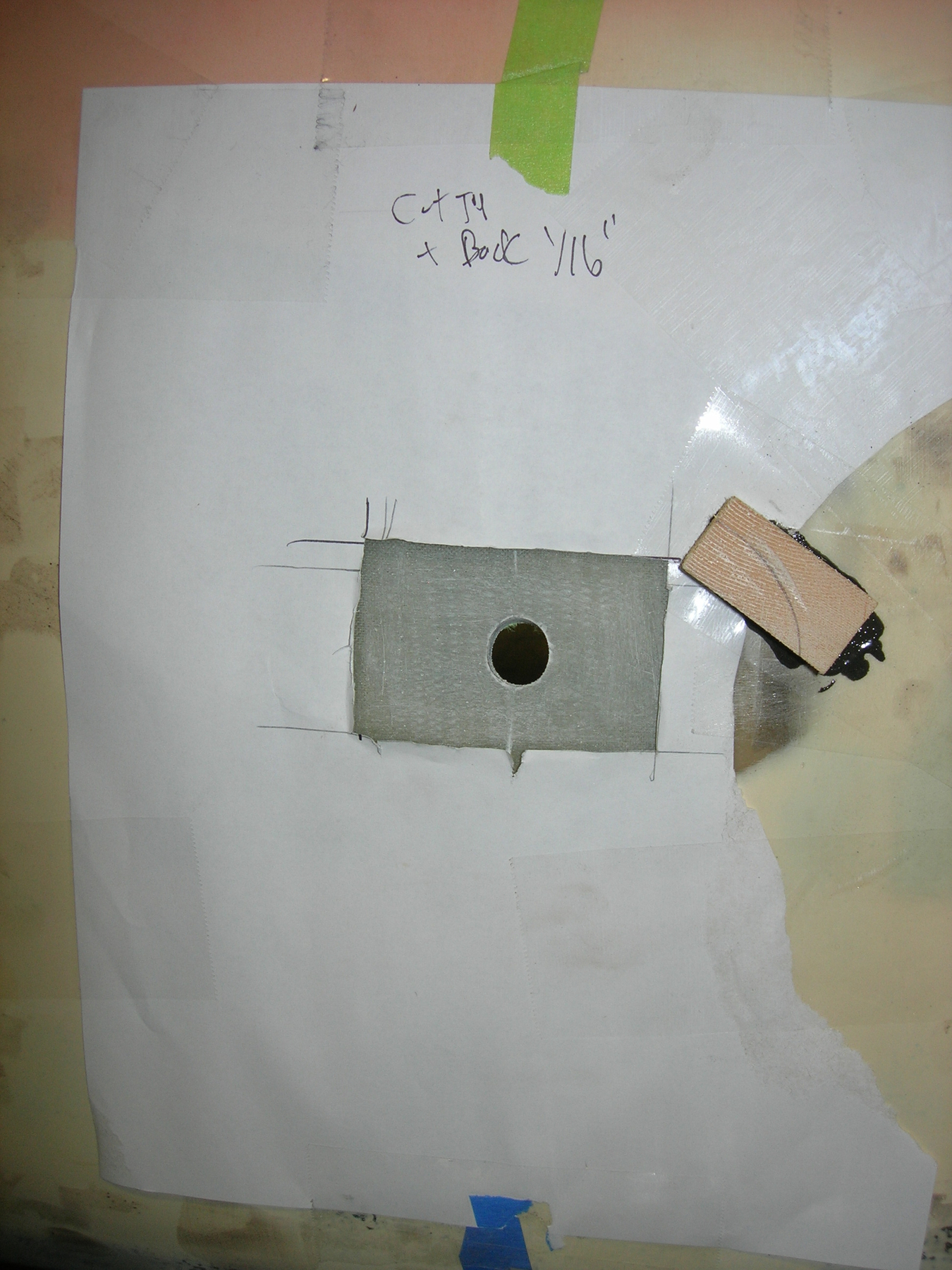

Starboard front socket contact area with template installed to show where to scuff sand and wet out with Redux.
Note wood spacer is JB KWIKed in place to keep proper wing sweep and prevent over squeeze while Redux is curing.
y10-10-19

Date: 10/19/2010
