DSCF0707

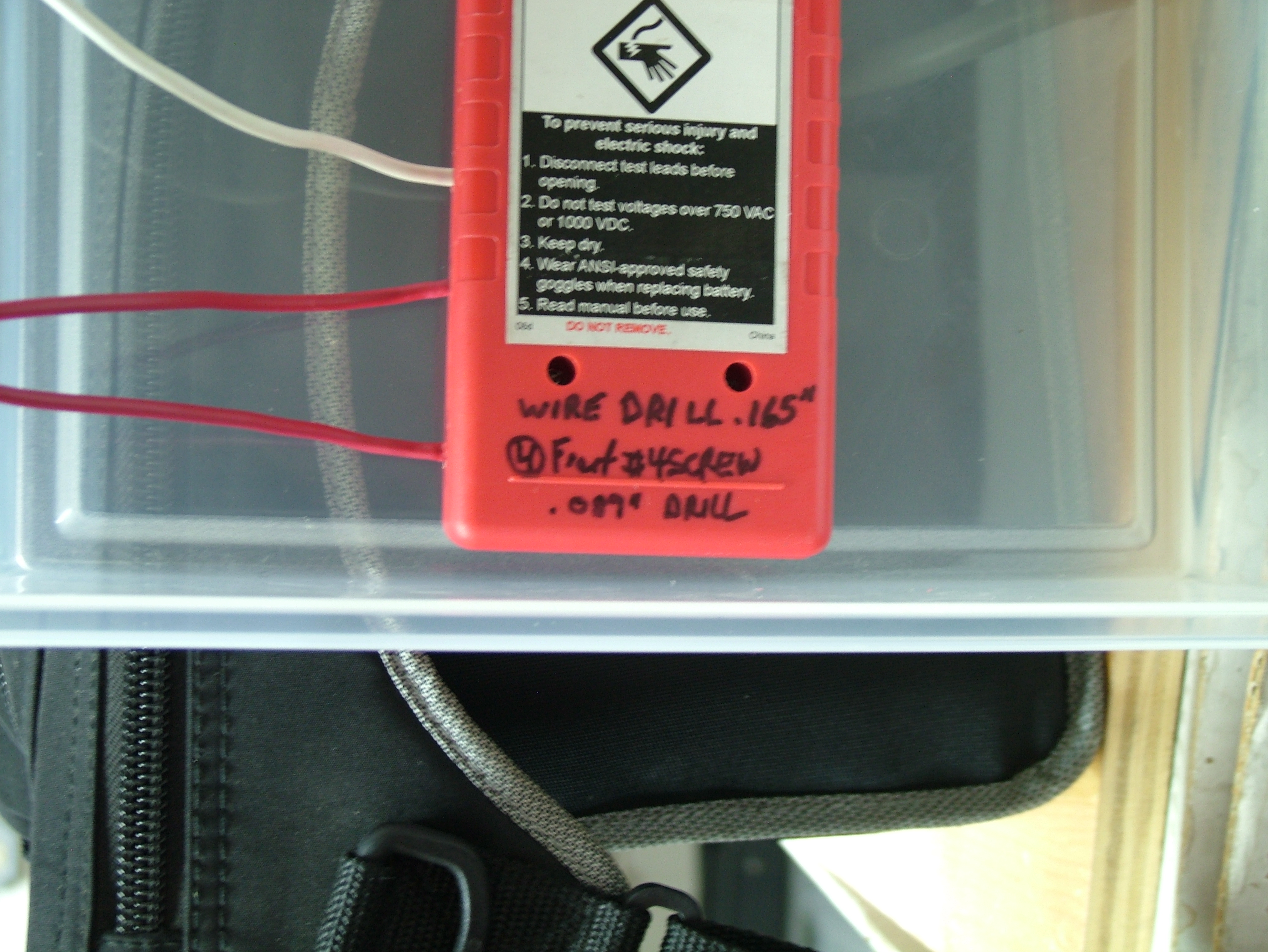

I used a .165" diameter drill for the #14 wires, and a .089" drill for the #4 screws that are holding the meter to the box.

When the back of the Meter was off, I drilled a hole in each corner with the .089" diameter drill being able to easily target where it would do no harm to the Meter.

Y11-09-06

Date: 08/02/2003

Size:
Full size: 4048x3040
