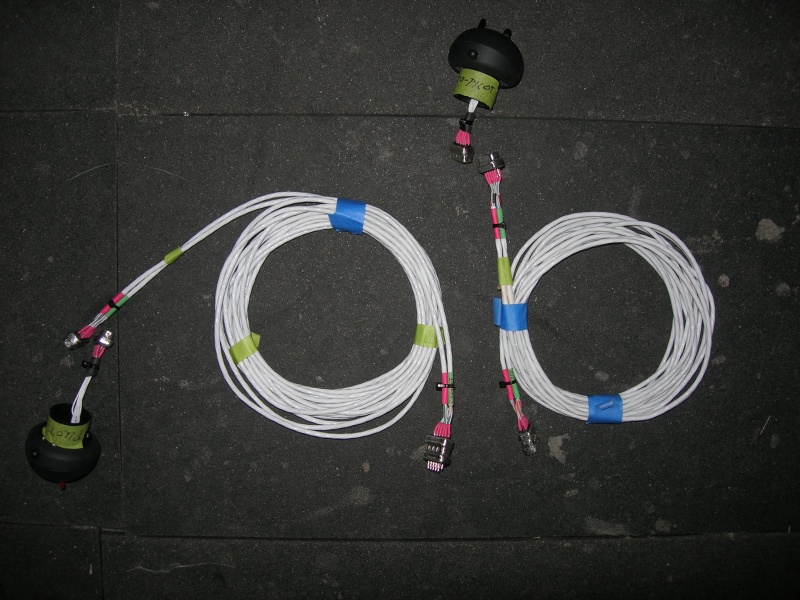

15 pin HD stick grip connectors 3.

We decided to make the stick removable, so Art added another 15 pin HD connector.
It will be located under the outboard thigh support.
For now he only wired the connector for the airframe, once we install the stick we can get the length and will wire the stick.
Art did however hack off the ears of the connector and solder the outside sheet metal together. Where needed, he used a thin copper foil tape to aid soldering the case together.
Y10-11-11
